Features

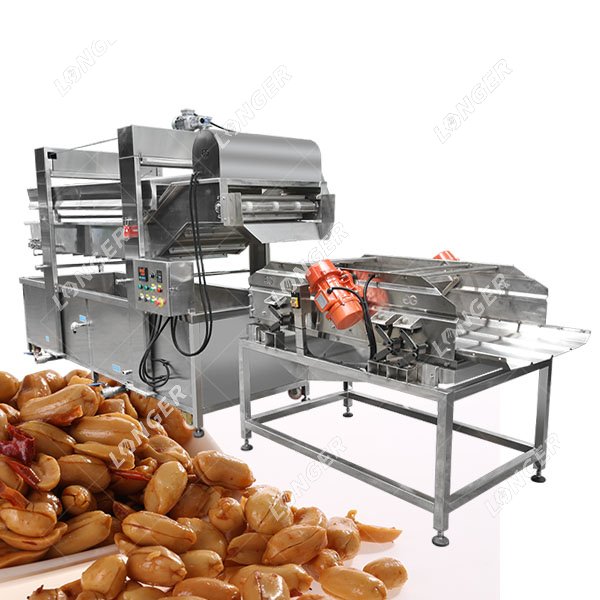

Introduction of Continuou Peanut Frying Machine
♦The continuous fryer adopts a double-layer mesh belt structure, and the temperature automatic control system can control the working conditions of the heating system to ensure the required frying temperature.
♦The peanut fryer is equipped with a liquid level detection device. When the oil level is lower than the required position, the oil charge pump can be controlled to open and add frying oil to the fryer.
♦This product is suitable for frying peanuts, french fries, chicken nuggets, puffed and other products.
♦The continuous fryer adopts a double-layer mesh belt structure, and the temperature automatic control system can control the working conditions of the heating system to ensure the required frying temperature.
♦The peanut fryer is equipped with a liquid level detection device. When the oil level is lower than the required position, the oil charge pump can be controlled to open and add frying oil to the fryer.
♦This product is suitable for frying peanuts, french fries, chicken nuggets, puffed and other products.

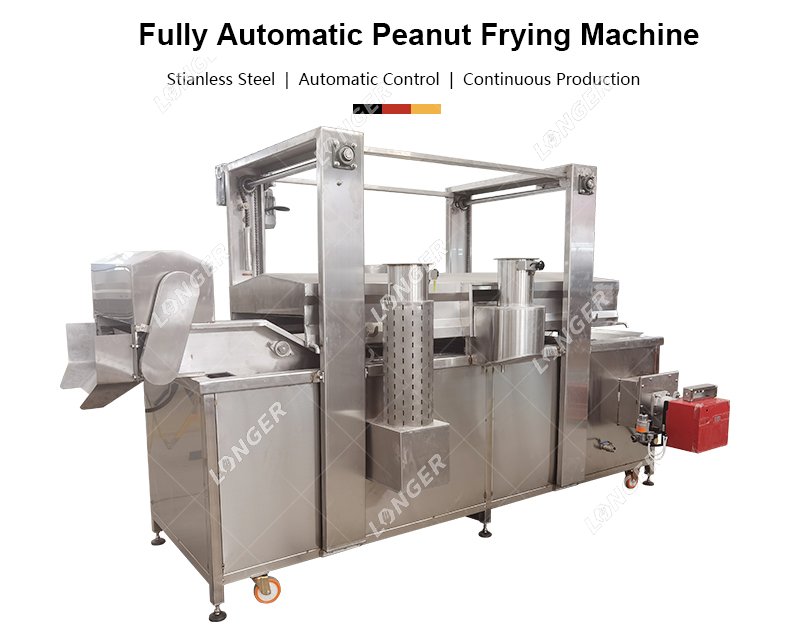

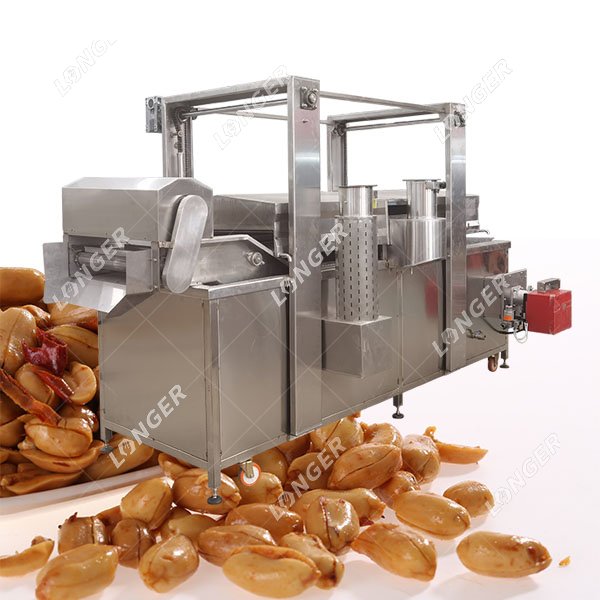

Features of Continuous Fryer Machine for Fried Peannut
♦Adopt double-layer mesh belt conveying system.♦Adjust the frying time through the inverter.
♦The frame of the body is welded by stainless steel rectangular tube.
♦The shell cladding plate is welded by 304 stainless steel hairline plate.
♦The mesh belt adopts stainless steel mesh belt, with stainless steel conveyor chains on both sides
♦In order to reduce heat loss, aluminum silicate insulation material is installed between the inner tank and the outer shell of the fryer.
♦The inner tank of the continuous fryer is made of stainless steel hairline plates. After the inner tank is welded, a water pressure test is carried out to ensure that the pot body does not leak.
For the convenience of cleaning and maintenance, the machine adopts manual or automatic lifting method. Stainless steel material, automatic temperature control, frying timing, automatic slag removal, and can be equipped with a circulating filter system, easy to clean, automatic oil replenishment, equipped with leakage protection, abnormal temperature protection and alarm, heating method can choose electric heating, diesel or natural gas heating.
Continuous Frying Machine Working Video:
Technical Data
| Model | ZLD3500 | ZLQ3500 | ZLQ4000 | ZLQ6000 |
| Heating | Electric | Gas | Gas | Gas |
| Power | 100kw | 2.25 | 2.2kw | 2.2kw |
| Size | 3700*1400*2300mm | 3700*1700*2300 | 4200*1700*2300mm | 6200*1700*2300mm |
| Weight | 800kg | 1200kg | 1400kg | 1800kg |
| Capacity | 200 kg/h | 200 kg/h | 300kg/h | 800 kg/h |
| Mesh Belt | 800mm | 800mm | 800mm | 900mm |
| Oil Volume | 800L | 1200L | 1420L | 2280L |
